In this study, we investigated the changes in radiation dose distribution caused by the presence of a tri-layered SMM made from polypropylene, using both calculations in the treatment planning system and measurements in a water phantom.
Irradiation was performed using a linear accelerator, the Versa HD™ (Elekta Oncology Systems, Crawley, UK), which delivers three photon beams with nominal energies of 6, 10, and 18 MV, as well as five electron beams with nominal energies of 6, 8, 10, 12, and 15 MeV. Calculations and measurements were carried out for all photon and electron energies.
3.1. Medical Mask Dose Calculation for Electron and Photon Energies
A cubic phantom made of polymethyl methacrylate (PMMA), consisting of 23 slabs each with a thickness of one centimeter and dimensions of 200 × 200 mm, was used in this study. The phantom was positioned on the table of a 16-slice computed tomography (CT) scanner (Siemens, Germany). The CT images were acquired both with and without the presence of three layers of the SMM placed on the phantom (
Figure 1). Images were captured with a slice thickness of 3 mm and transferred to the Monaco treatment planning system (Elekta, Monaco 5.11, UK) for target volume delineation and treatment plan design.

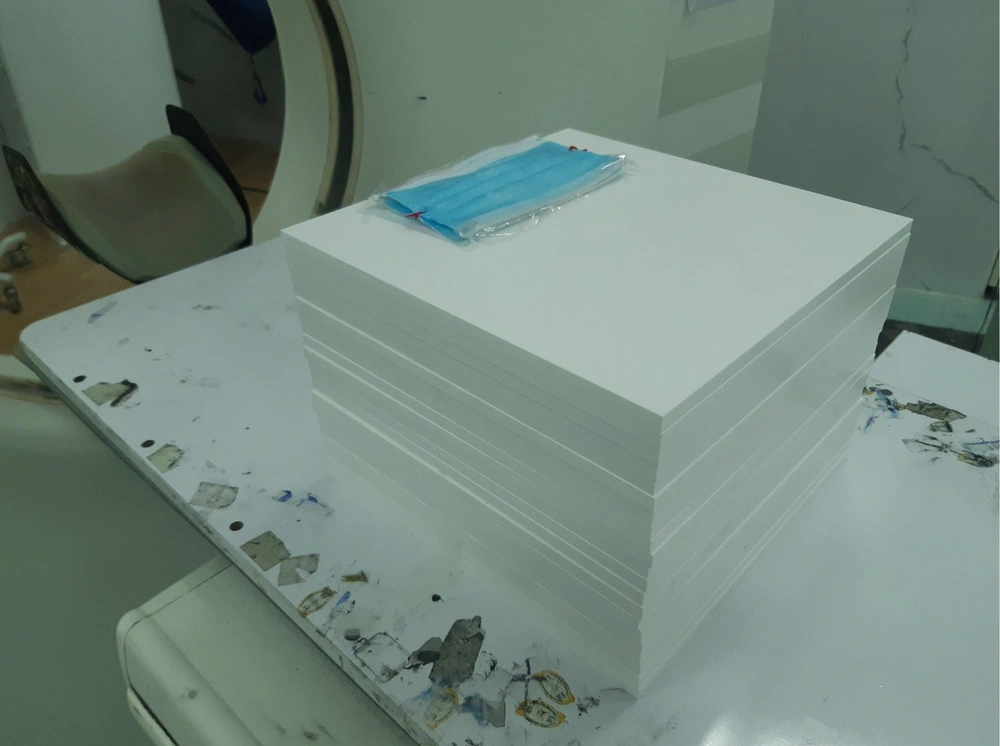

Set up of surgical medical mask (SMM) on polymethyl methacrylate (PMMA) phantom for computed tomography (CT) scan

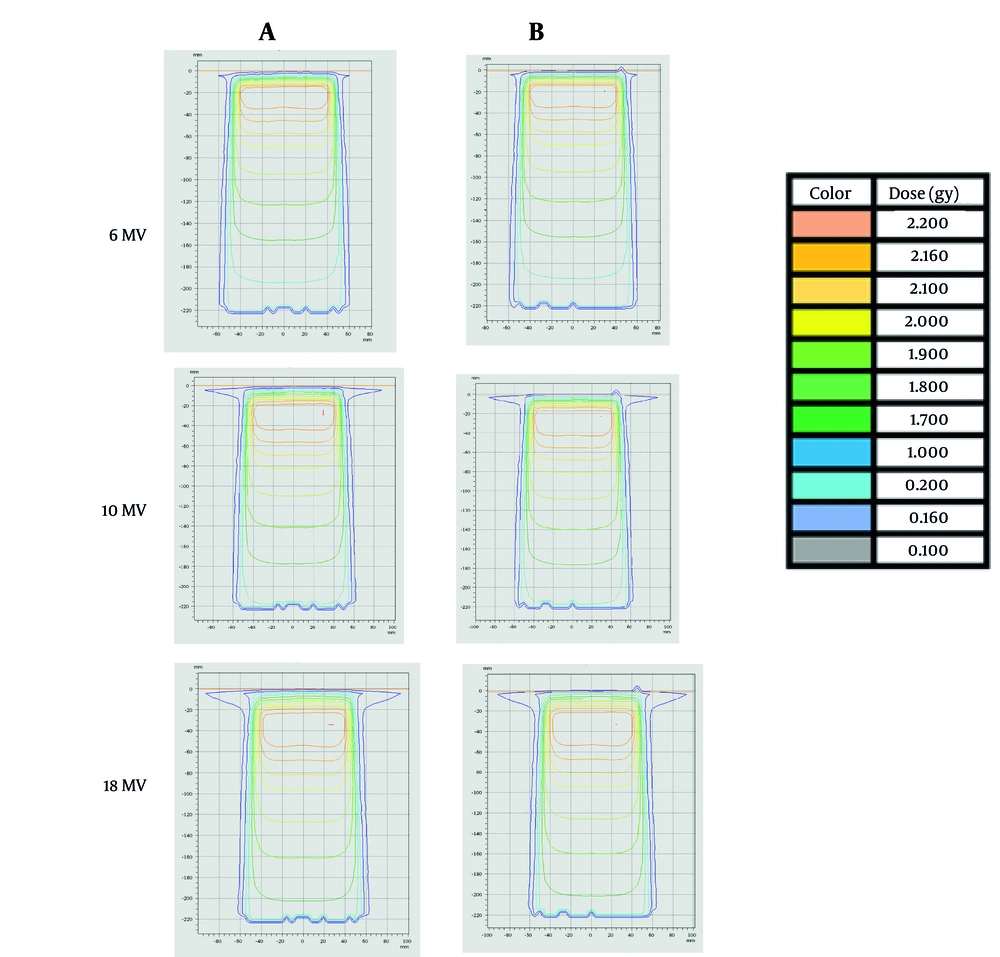

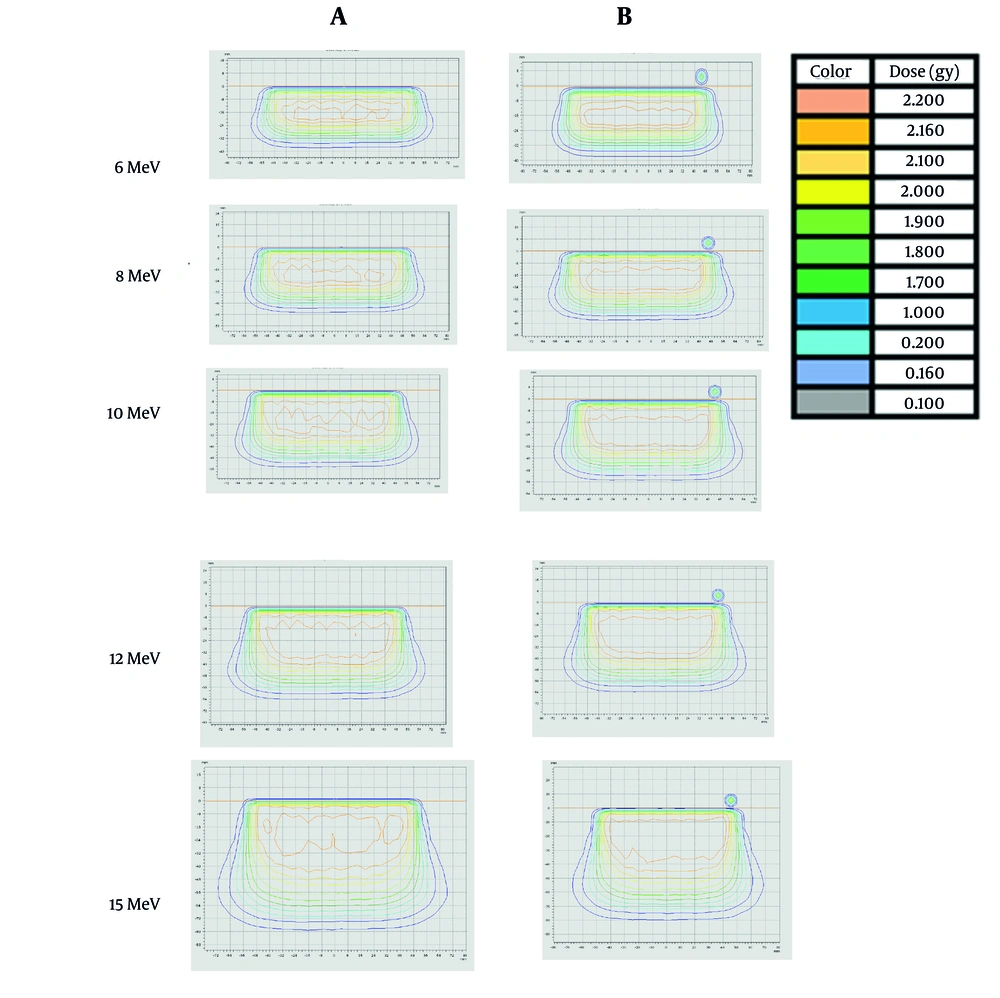

The dose distribution was calculated within the phantom using a 100 × 100 mm radiation field for all photon and electron energies. Calculations were carried out from the surface to a depth of 230 mm under two conditions: (A) with SMM (under the mask), and (B) 50 mm adjacent to the SMM (no mask). Dose calculations for photon radiation were performed using the collapse cone dose calculation algorithm, while those for electron beams were conducted using the Monte Carlo algorithm. In this section, the dose enhancement ratio and transmission factor were defined at a depth of 100 mm as follows:
Calculated dose enhancement ratio (CER) = Dose at open field close to the SMM/dose under the SMM
Calculated transmission factor (CTF) = Dose under the SMM/dose at open field
3.2. Medical Mask Dose Measurements at Electron and Photon Radiation
Relative and absolute dosimetry measurements were performed using a BeamScan water phantom (PTW, Freiburg, Germany). A portion of the phantom was covered with a tri-layered SMM, while the remaining part was left uncovered to serve as a control.
By positioning an ion chamber beneath the SMM, it was possible to measure the radiation dose received in the area specifically covered by the SMM material. By comparing measurements taken with and without the SMM, the surface dose enhancement factor was evaluated under constant temperature and pressure conditions using the following relationship:
Measured dose enhancement ratio (MER) = Dosimeter reading with SMM/dosimeter reading without SMM
Additionally, the transmission factor, which represents the attenuation caused by the SMM, was defined as:
Measured transmission factor (MTF) = Dosimeter reading with SMM (d = 100 mm)/dosimeter reading without SMM (d = 100 mm)
3.2.1. Photon Percentage Depth Dose
To investigate the effect of the SMM on radiation dose distribution, relative dosimetry was performed both with and without the presence of the SMM in the radiation field. Measurements were conducted once under the mask and once adjacent to the main radiation field.
For relative dosimetry, two Semiflex 3D chambers (PTW, Freiburg, Germany), each with an active volume of 0.125 cc, were used. One chamber was placed in the air at the corner of the field to serve as a reference dosimeter, while the other was used as the measuring dosimeter positioned inside the water phantom within the radiation field. The measuring dosimeter was gradually moved from the surface to a depth of 300 mm in the water, and the electric charge collected for 6, 10, and 18 MV photon radiation was recorded in nanocoulombs (nC) along the central axis of the beam using the MEPHYSTO mc2 software (PTW, Freiburg, Germany). The readings were normalized to the maximum value and presented as the percentage depth dose (PDD).
The PDD measurements were performed under the following four conditions: (A) Open field, without SMM (no mask); (B) within the field, under the SMM (with mask); (C) outside the field, 50 mm adjacent to the main radiation field, with SMM; (D) outside the field, 50 mm adjacent to the main radiation field, without SMM. Each measurement was compared against its corresponding control group. The use of individual control groups accounted for any uncertainties introduced by setup variations and positional errors.
3.2.2. Electron Percentage Depth Dose

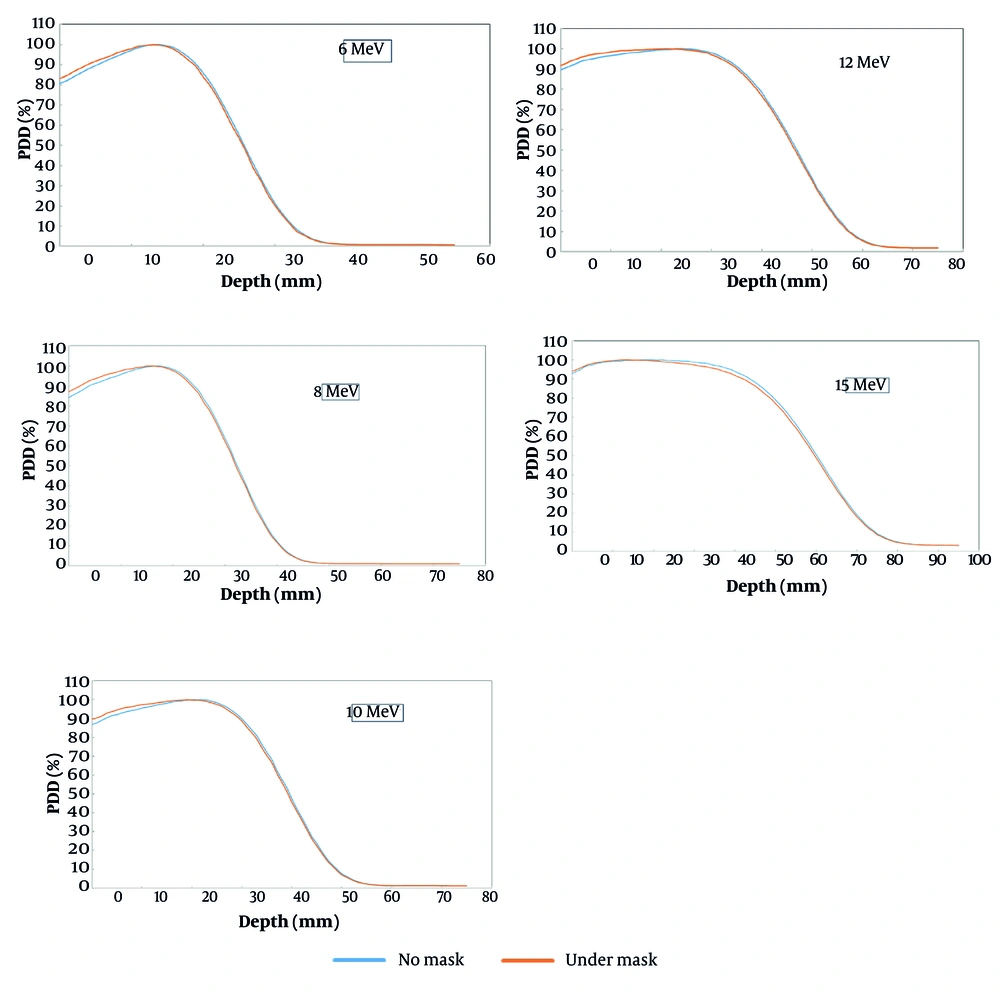

For electron relative dosimetry, similar to the photon dosimetry procedure, a Semiflex 3D dosimeter was used. A 100 × 100 mm electron applicator was employed to measure the amount of collected charge for electron radiation energies of 6, 8, 10, 12, and 15 MeV. The PDD measurements were performed from the water surface to a depth of 80 mm under two conditions: (A) Without SMM (outside the mask), and (B) with SMM (under the mask). Based on the data obtained from the photon depth dose measurements, we were able to determine the percentage difference in dose between the masked and unmasked conditions. The difference percentage was calculated using the following formula: Difference percentage = (Dosimeter readindg under mask - Dosimeter reading in open field) × 100/Dosimeter reading in open field.
